Automatic Belt Conveyor 415V,440V 400mm Quarry And Mineral Transport Coal Tripper Conveyor

Product Categories

Shanghai Runwell Machinery Equipment Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Automatic Belt Conveyor 415V,440V 400mm Quarry And Mineral Transport Coal Tripper Conveyor

Name: Automatic Belt Conveyor 415V440V 400mm Quarry And Mineral Transport Coal Tripper Conveyor
Brand: RUNWELL
Price: 5000 USD

Quality Automatic Belt Conveyor 415V,440V 400mm Quarry And Mineral Transport Coal Tripper Conveyor wholesale

Brand Name : RUNWELL

Model Number : B500,B650,B800,B1000,B1200, B1400,B1600

Certification : CE,ISO certificates

Place of Origin : Shanghai, China

MOQ : 1 set

Price : USD5000-500000

Payment Terms : T/T, Western Union, L/C, MoneyGram

Supply Ability : 50 sets per month

Delivery Time : 10-20 working days

Packaging Details : Container, Nude Packs, in Bulk; Export Packing Standard

Material : Rubber + EP fabric

Power(w) : 5.5kW - 400kW

Voltage : 220V/380V/440V

Belt width : B500,B650,B800,B1000,B1200, B1400,B1600

Speed : 0.8-5.0M/S

Condition : New

After-sales service provided : Engineers available to service machinery overseas,Online support

Structure : Belt Conveyor,Conveyor System

Type : BELT CONVEYOR

Color : Black,brown,Customers' Request,

Application : cement,crusher plant,quarry, mining area, coal

Product name : belt conveyor,large capacity conveyor belt

Warranty : 12 months from production time or 15 months from leave factory

Feature : High Transmission Efficiency

Belt material : Rubber,PE

Frame material : Carbon Steel

Name : DT-II Type belt conveyor

Contact Now

Product Description

Belt Conveyor

Product Introduction
The belt conveyor is a high-performance belt conveyor researched and developed by the company in accordance with the actual situation of the production lines in such industries as diggings, coal mining and metallurgy, etc.The belt conveyor adopts modular part design, which can greatly simplify the production process, reduce the difficulty in installation and removal, save the logistic cost, shorten the stock cycle, improve the product quality and facilitate later maintenance.

Belt Conveyor is the most ideal high-efficiency continuous conveying equipment for minerals. According to the requirements of the conveying process, it can be transported by single or multiple belt conveyors or with other conveying equipment to form a horizontal or inclined conveying system to meet the needs of different layouts of production lines.It's widely used in sandstone yard, mining, metallurgy, mineral processing, coal mining and other industrial sectors.

Automatic Belt Conveyor 415V,440V 400mm Quarry And Mineral Transport Coal Tripper Conveyor

Features
Product advantages:
1. It is one of the cheapest ways to move material long distances.
2. There is virtually no degradation of your product caused by conveying.
3. The conveyor can have changes in elevation.
4. The material can be visible on the belt while being conveyed.
5. Belts can be loaded virtually any place along the belt.
6. The belt can have "trippers" to unload the belt almost any place.

Main Structure
1.Reception chute 2.Support Leg 3.Tail Frame Assembly (including turnabout Pulley, Tension Equipment etc.)
4.Ladder 5.Middle Frame Assembly 6.Walk way, handrail 7.Supporting leg 8.Middle Frame Assemble 9.Upper Pin
10.Lower Pin 11.Base 12. Head Frame Assemble 13.Supporting Leg 14.Slider 15.Driven assembly 16.Head chute
Automatic Belt Conveyor 415V,440V 400mm Quarry And Mineral Transport Coal Tripper Conveyor

Technical Parameters

Belt Width (mm)	Belt Length (m) / Power (kw)			Belt Speed (m/s)	Capacity (t/h)
400	<12/1.5	12-20/2.2	20-25/3	0.8-2.0	40 -80
500	<12/3	12-30/4	20-30/5.5	0.8-2.0	78-191
650	<12/4	12-20/5.5	20-30/7.5	0.8-2.0	131-323
800	<10/4	10-15/5.5	15-25/7.5	1.0-2.0	278-546
1000	<10/5.5	10-20/7.5	20-25/11	1.0-2.0	435-853
1200	<10/7.5	10-20/11	20-25/15	1.0-2.0	655-1284

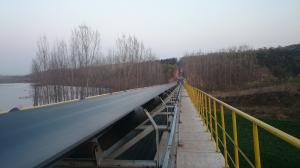

Site Photo

Company Profile
Shanghai RUNWELL Machinery Co.,Ltd (RUNWELL) is a professional manufacturer of crushing and grinding equipment to process the stones from mountain, river, and mines. In the past few decades, we have been focused on the design, research&development, manufacturing, sales, installation, and maintenance of the crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts. Our main products are: Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill and so on. These equipments are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.
Automatic Belt Conveyor 415V,440V 400mm Quarry And Mineral Transport Coal Tripper Conveyor

Packaging and Shipping

Questions & Answers
1. How long is the delivery time of your product?
The delivery time is within 20 working days.

2. What is the payment term?
The payment term is T/T.

3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.

4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.

5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
